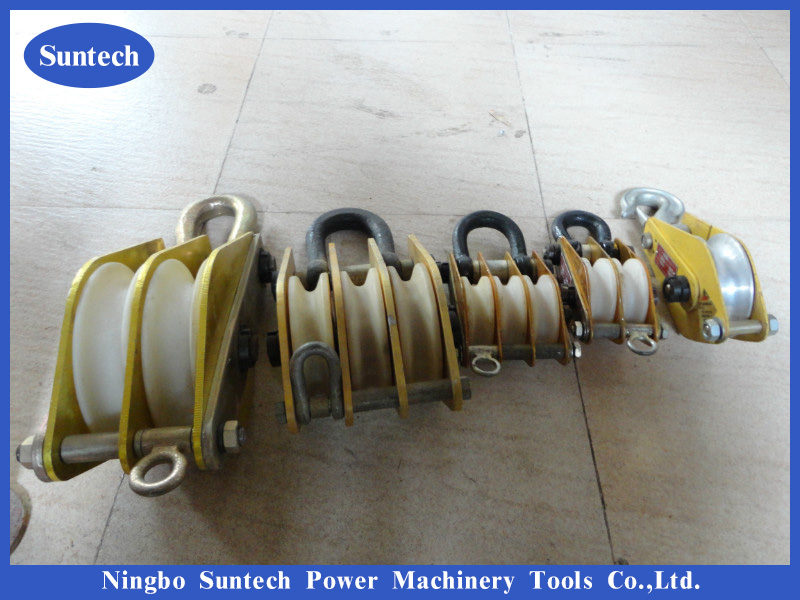

3 Ton Cable Pulling Pulley Nylon Sheave Hook Type Hoisting Lifting Block
Application:3 Ton Cable Pulling Pulley Nylon Sheave Hook Type Hoisting Block Lifting
It is applied in line construction to craning weight,ect.It is light because it adopts aluminum alloy side panel and MC nylon sheave.The monosheave block is open.
Features:3 Ton Cable Pulling Pulley Nylon Sheave Hook Type Hoisting Block Lifting
1. the pulley block we produce also can be with open option that can insert the wire rope.
2. pulley block material is the best quality MC nylon sheave, it is light, and durable, long life time.
3. pulley block/sheave pulley widely used in installation of line construction.
MC Nylon Sheave Hoisting Tackle Date Sheet
3 Ton Cable Pulling Pulley Nylon Sheave Hook Type Hoisting Block Lifting
| Item Number | Model | Number of Sheave | Rated Load (kN) | Outer Diameter of Sheave ×Sheave Width (mm) | Rope Diameter (mm) | Weight (kg) | Hoisting Point Type |
| 11101 | QHN1-1K | 1 | 10 | Φ100×31 | Φ7.7 | 1.8 | G | H | |
| 11102 | QHN1-2 | 2 | 10 | Φ80×27 | Φ6 | 1.8 | G | H | |
| 11103 | QHN1-3 | 3 | 10 | Φ80×27 | Φ6 | 2.1 | G | H | |
| 11111 | QHN2-1K | 1 | 20 | Φ120×35 | Φ9.3 | 2.2 | G | H | B |
| 11112 | QHN2-2 | 2 | 20 | Φ100×31 | Φ7.7 | 2.6 | G | H | |
| 11113 | QHN2-3 | 3 | 20 | Φ100×31 | Φ7.7 | 3.7 | G | H | |
| 11121 | QHN3-1K | 1 | 30 | Φ150×39 | Φ11 | 3.4 | G | H | B |
| 11122 | QHN3-2 | 2 | 30 | Φ120×35 | Φ9.3 | 4.5 | G | H | |
| 11123 | QHN3-3 | 3 | 30 | Φ100×31 | Φ7.7 | 4.6 | G | H | |
| 11131 | QHN5-1K | 1 | 50 | Φ166×40 | Φ13 | 5.2 | G | H | B |
| 11133 | QHN5-2 | 2 | 50 | Φ150×39 | Φ11 | 5.5 | G | H | |
| 11134 | QHN5-3 | 3 | 50 | Φ120×35 | Φ9.3 | 5.1 | G | H | |
| 11141 | QHN8-1K | 1 | 80 | Φ205×49 | Φ17 | 7.2 | G | H | B |
| 11142 | QHN8-2 | 2 | 80 | Φ166×40 | Φ13 | 8.3 | G | H | |
| 11143 | QHN8-3 | 3 | 80 | Φ150×39 | Φ11 | 7.9 | G | H | |
| 11151 | QHN10-1K | 1 | 100 | Φ246×60 | Φ18.5 | 11.4 | G | | B |
| 11152 | QHN10-2 | 2 | 100 | Φ166×40 | Φ13 | 10.2 | | H | |
| 11153 | QHN10-3 | 3 | 100 | Φ150×39 | Φ11 | 11.7 | | H | |
| 11161 | QHN15-1K | 1 | 150 | Φ280×65 | Φ21.5 | 12.1 | | | B |
| 11162 | QHN15-2 | 2 | 150 | Φ205×49 | Φ17 | 12.8 | | H | |
| 11163 | QHN15-3 | 3 | 150 | Φ166×40 | Φ13 | 11.8 | | H | |
| 11164 | QHN15-4 | 4 | 150 | Φ150×39 | Φ11 | 13.9 | | H | |
Our Service:
High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;
Send you some free samples along with your cargo to share us quality;
Pls check the related items used the steel -cast materail, you can clearly see the raw material we apoted.
