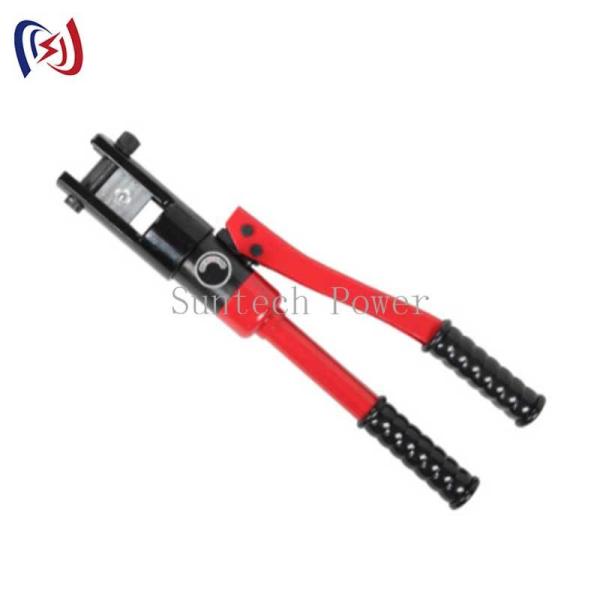

Integral Hydraulic Crimper 80-120KN for 10-630mm2 Cables

Name: Integral Hydraulic Crimper 80120KN for 10630mm2 Cables
Brand: Suntech
Price: 1 USD

China Integral Hydraulic Crimper 80-120KN for 10-630mm2 Cables wholesale

Brand Name : Suntech

Model Number : YQK-120

Certification : ISO9001

Place of Origin : Ningbo,China

MOQ : 1 PCS

Price : Negotiation

Payment Terms : L/C,T/T

Supply Ability : 3000 PCS/Month

Delivery Time : 3-7days

Packaging Details : Plywood Case

Name : Integral hydraulic Crimping Pliers

Item No. : 16181-16186A

Model : YQK-120

Crimping force : 80-120KN

Crimping Range : 10-630mm2

Weight : 4.5-9.5KG

Contact Now

Heavy Duty Integral Hydraulic Crimper With Steel Reinforced Frame

Product Introduction

•
Advanced hydraulic crimping tool for power line connector installation
•
Integrated hydraulic system provides consistent crimping force
•
Essential equipment for professional cable termination crews

Key Features

1.
Hydraulic Performance

Self-contained oil-filled system

Consistent pressure for perfect crimps
2.
Robust Construction

Forged steel jaws withstand heavy use

Reinforced pivot points
3.
Safety Assurance

Double insulated handles

Pressure relief safety valve
4.
Precision Crimping

Calibrated dies for uniform compression

Visual crimp indicator
5.
Operational Efficiency

One-handed operation capability

Quick-release valve for fast reset

Typical Applications

•
High voltage cable terminations
•
Underground cable splicing
•
Substation connector installations
•
Emergency repair crimping

Workflow Integration

•
Compatible with standard utility tool belts
•
Works with all common cable types
•
Integrates with connector systems

Maintenance Advantages

•
Sealed hydraulic system
•
Easy to clean and inspect
•
Long service life

User Guidelines

1.
Pre-Operation

Inspect tool condition

Select proper die set
2.
During Use

Position connector correctly

Apply steady pressure
3.
Post-Use

Clean tool surfaces

Store in protective case

Industry Compliance

•
Meets OSHA 1910.269 standards
•
Complies with IEEE 837
•
Certified by major utilities

Why Professionals Choose Us

•
50% more consistent crimps than manual tools
•
40% faster operation than competitors
•
1
-year hydraulic system warranty

Customer Support

•
Free training videos
•
24/7 technical support
•
Replacement parts program

Purchasing Options

•
Single units or crew kits
•
Custom die configurations
•
Volume discounts

Item number	16185	16186	16186A
Model	KYQ-400	KYQ-300	KYQ-300C
Crimping force	120KN	100KN	100KN
Crimping range	16-400mm²	16-300mm²	16-300mm²
type	hexagon crimping	hexagon crimping	hexagon crimping
Dies	50,70,95,120,150, 185,240,300,400mm²	16,25,35,50, 70,95,120,150, 185,240,300mm²	16,25,35,50, 70,95,120,150, 185,240,300mm²
Stroke	32mm	17mm	17mm
Length	approx.540mm	approx.500mm	approx.500mm
Weight(KG)	approx.N.W6.7KG G.W9.5KG	approx.N.W4.9KG G.W7.7KG	approx.N.W4.9KG G.W7.7KG

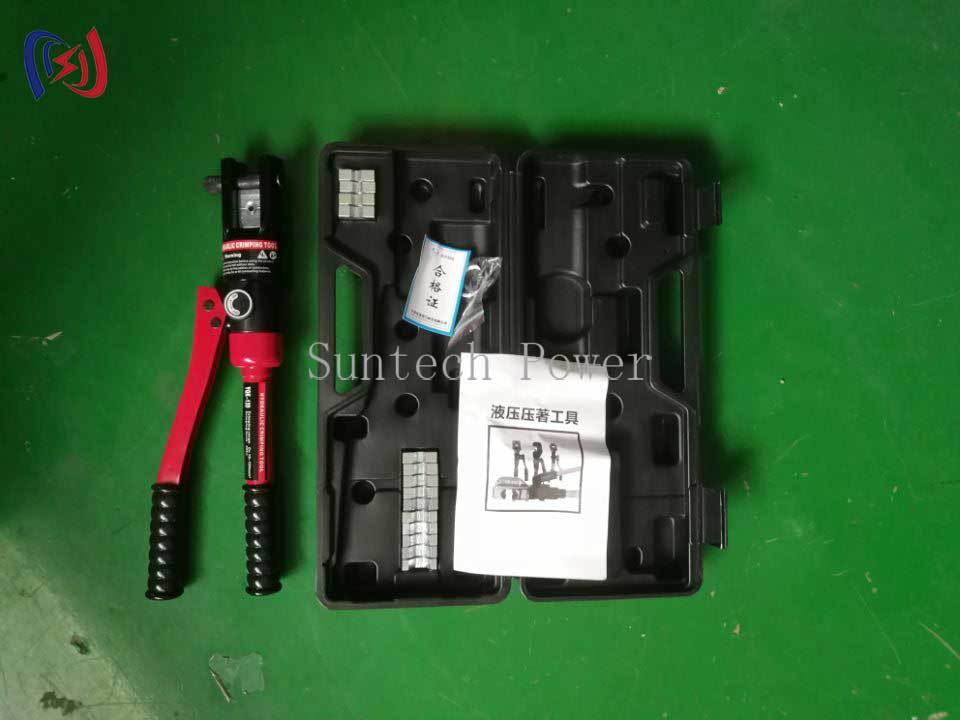

Package	plastic box	plastic box	plastic box

Integral Hydraulic Crimper 80-120KN for 10-630mm2 Cables
