Hydraulic Pump CP-700-CFP-800B for Power Line Maintenance

Product Categories

Conductor Stringing Tools [177]
Conductor Stringing Blocks [244]
Cable Roller Pulley [123]
Come Along Clamp [111]
Anti Twist Wire Rope [40]
Conductor Drum Stand [43]
Transmission Line Stringing Tools [38]
OPGW Stringing Tools [26]
Cable Winch Puller [189]
Tower Erection Tools [79]
Hydraulic Puller Tensioner [29]
Chain Lifting Hoist [40]
Hydraulic Crimping Tools [73]
High Voltage Cable Testing Equipment [58]
Transmission Line Insulator [85]
Hoisting Tackle [29]
Bare Aluminum Conductor [17]

Ningbo Suntech Power Machinery Tools Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

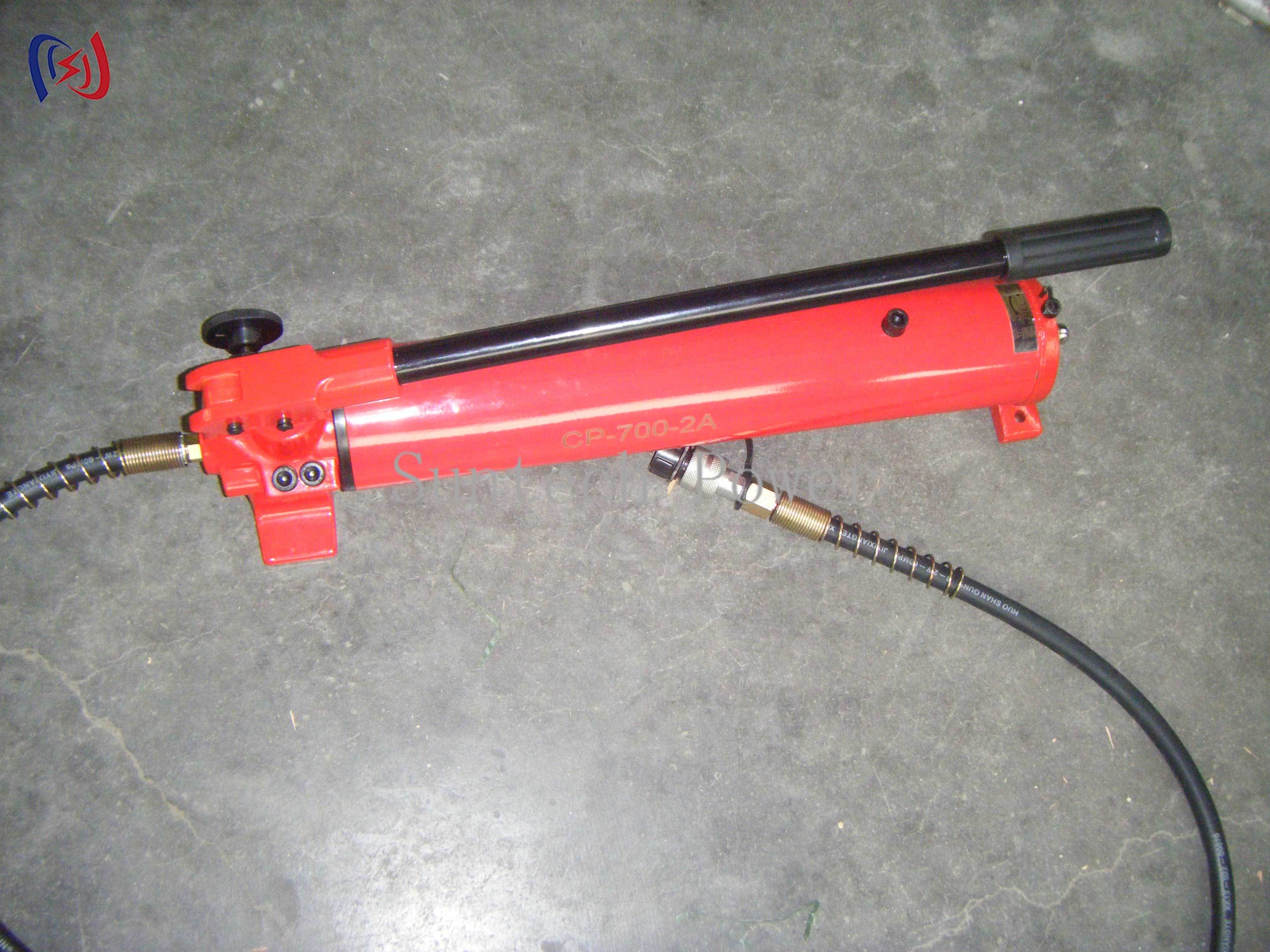

Hydraulic Pump CP-700-CFP-800B for Power Line Maintenance

Name: Hydraulic Pump CP700CFP800B for Power Line Maintenance
Brand: Suntech
Price: 1 USD

China Hydraulic Pump CP-700-CFP-800B for Power Line Maintenance wholesale

Brand Name : Suntech

Model Number : CP-700

Certification : ISO9001,CCC

Place of Origin : Ningbo,China

MOQ : 1 PCS

Price : Negotiation

Payment Terms : L/C,T/T

Supply Ability : 3000 PCS/month

Delivery Time : 3-5days

Packaging Details : Plywood Case

Name : Hydraulic Pump

Item No. : 16164-16164B

Model : CP-700-CFP-800B

Oil Capacity : 600cc-2700cc

Weight : 10.8-15.5KG

Warranty : 1 year

Contact Now

Professional Hydraulic Pump For Power Line Construction And Maintenance

Product Introduction

•
Essential power source for hydraulic tools in power line operations
•
Engineered for reliable performance in demanding conditions
•
Trusted by utility professionals for consistent hydraulic power delivery

Key Features

1.
Powerful Hydraulic Performance

High-pressure output for demanding applications

Consistent flow rate under load
2.
Robust Construction

Cast iron pump body withstands heavy use

Reinforced mounting points
3.
Safety Assurance

Integrated pressure relief system

Thermal overload protection
4.
Operational Efficiency

Quick-connect hydraulic couplings

Easy-to-read pressure gauge
5.
Maintenance Advantages

Self-priming design

Easy access for servicing

Typical Applications

•
Cable crimping operations
•
Pole setting and pulling
•
Transmission line maintenance
•
Emergency repair work

Workflow Integration

•
Compatible with standard hydraulic hoses
•
Works with all common hydraulic tools
•
Fits in most utility service vehicles

Maintenance Benefits

•
Minimal lubrication requirements
•
Easy to clean and inspect
•
Long service life

User Guidelines

1.
Pre-Operation

Check hydraulic fluid levels

Inspect hose connections
2.
During Use

Monitor pressure gauge

Avoid exceeding rated capacity
3.
Post-Use

Clean external surfaces

Store in protected area

Industry Compliance

•
Meets OSHA equipment standards
•
Complies with ANSI specifications
•
Certified by major utilities

Why Professionals Choose Us

•
30% more efficient than standard pumps
•
40% quieter operation than competitors
•
1-year performance warranty

Customer Support

•
Free maintenance training
•
24/7 technical support
•
Replacement parts program

Purchasing Options

•
Single units or fleet packages
•
Custom configurations
•
Volume discounts

Item number	16164C	16164	16164A	16164B
Model	CP-180	CP-700	CP-700A	CFP-800B
Type	hand	hand	hand	foot pump
Max output pressure	/	low pressure 2Mpa	low pressure 2Mpa	low pressure 2Mpa
Max output pressure	high pressure 70MPa	high pressure 70Mpa	high pressure 70Mpa	high pressure 70Mpa
Output of the oil	/	low pressure 13cc	low pressure 13cc	low pressure 13cc
Output of the oil	high pressure 1.8cc	high pressure 2.3cc	high pressure 2.3cc	high pressure 2.3cc
Oil capacity	350cc	900cc	2700cc	600cc
Direction of piston	single	double	double	double
Weight(KG)	approx.N.W9.5KG G.W10.9KG	approx.N.W9.5KG G.W10.9KG	approx.N.W14.1KG G.W15.5KG	approx.N.W9.8KG G.W10.8KG
Measurement (LxWxH)	340×60×120mm	700x100x160mm	700x100x200mm	520x160x170mm
Package	paper box	paper box	paper box	paper box
